Forklifts

3-Wheel Dual-drive Counterbalance Forklift 1500kg

£14,999

£14,499

3 reviews

The CPD15TVL is a compact 3-wheel electric forklift built for tight spaces and demanding workloads. With a 1,500kg lift capacity, 80V lithium battery, and dual front drive motors, it delivers the agility and power you need without the emissions, fuel costs, or heavy maintenance of traditional trucks. Just plug into any standard outlet and go.

Lift Height

Get a QuoteRequest Info

Or download datasheet

Estimated delivery within 1-2 weeks

3 year battery warranty

EP Store guaranteed local dealer

Capacity
1500 kg

Lift height
5000 mm

Battery
150 Ah 80 V

Fork dimensions
100 x 40 x 920 mm

Ground clearance
89 mm

Velocity
14 km/h

Name	Value
Operator type	Seated
Rated capacity	1500 kg
Load centre distance	500 mm
Load distance, centre of drive axle to fork	420 mm
Wheelbase	1230 mm
Service weight	2950 kg
Axle loading, laden front/rear	3928/522 kg
Axle loading, unladen front/rear	1305/1645 kg
Tyres	Solid
Tyre size, front	18X7-8 mm
Tyre size, rear	15X4.5-8 mm
Wheels, number front/rear (x=drive wheels)	2X/2
Tread width, front	943 mm
Tread width, rear	175 mm
Max lift height	5000 mm
Tilt of mast/fork carriage forward/backward	6/7 °
Height, mast lowered	2075 mm
Free lift	100 mm
Lift	3000 mm
Height, mast extended	4055 mm
Height of overhead guard (cabin)	2078 mm
Seat height relating to SIP/stand height	1050 mm
Coupling height	600 mm
Overall length	2733 mm
Length to face of forks	1813 mm
Overall width	1070 mm
Fork dimensions	100X40X920 mm
Fork carriage ISO 2328, class/type A, B	2A
Ground clearance, laden, below mast	89 mm
Ground clearance, centre of wheelbase	92 mm
Aisle width for pallets 1000×1200 crossways	3175 Ast
Aisle width for pallets 800 × 1200 crossways	3300 Ast
Turning radius	1450 Wa
Travel speed, laden/unladen	13/14 km/h
Lift speed, laden/unladen	0.33/0.5 m/s
Lowering speed, laden/unladen	0.55/0.55 m/s
Max. gradeability, laden/unladen	10/15 %
Service brake	Hydraulic
Parking brake	Mechanical
Drive motor rating S2 60 min	5.0X2 kW
Lift motor rating at S3 15%	11 kW
Battery voltage	80 V
Battery voltage/nominal capacity K5	150 Ah
Battery type	Li-Ion
Battery weight	165 kg
Type of drive unit	AC
Steering design	Hydraulic
Sound pressure level at the driver's seat	68 dB(A)

APF

Verified buyer

At APF, we operate 24 hours a day, 5 days a week with 3 EP forklifts, and thanks to the lithium batteries and opportunity charging, we never have to swap batteries. The added benefit of rooftop solar panels allows us to charge during the day using free energy, making the forklifts even more cost-effective and reliable for continuous use.

Atida eFarma

Verified buyer

At Atida's efarma, we face unique challenges in materials handling within pharmaceutical e-commerce. As our business has grown, we've relied on EP Equipment forklifts for dependable support. EP understands our needs and offers fast, efficient solutions, helping us keep pace with the hectic rhythm of e-commerce. We can always count on them to find quick solutions when difficulties arise.

Maurizio Giacosa

Verified buyer

We chose EP Equipment to make a green shift in our business. With the lithium battery forklifts and pallet trucks, we're reducing our environmental impact while improving efficiency at the same time.

Explore the CPD15TVL

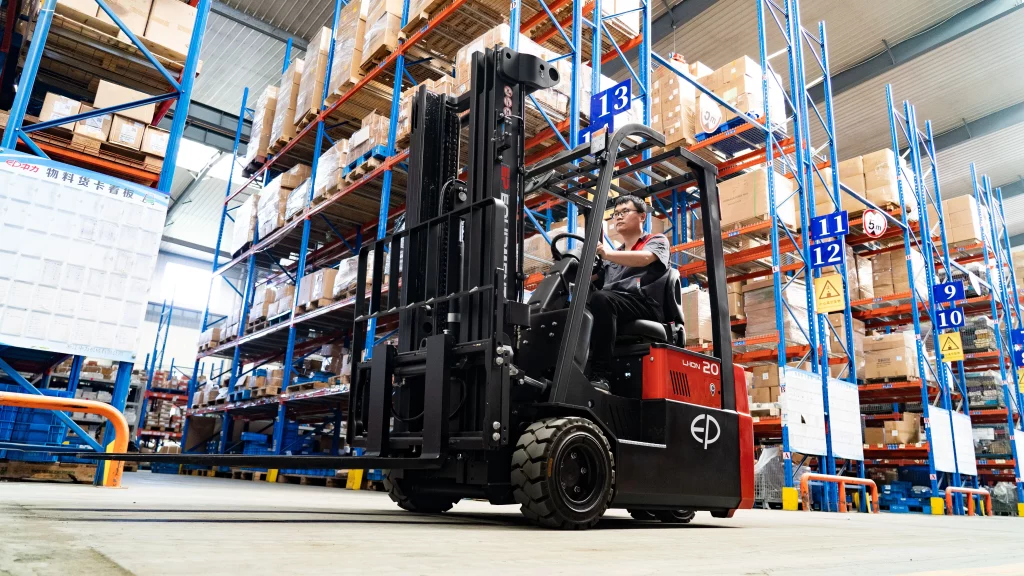

From busy warehouses to retail stockrooms and light industrial units, the CPD15TVL thrives where space is tight and productivity matters. Its compact 3-wheel design lets operators navigate narrow aisles and confined loading areas with ease, while the 1,500kg lift capacity handles palletised goods up to 5 metres high. Whether you're running a small distribution centre or managing stock in a cramped back-of-house area, this forklift fits right in and gets the job done.

Compact Manoeuvrability

80V Lithium Power

Plug-In Charging

Dual Front Drive

Our dedicated sales and support network for the CPD15TVL

With the support of EP Equipment distributors spread across the UK, you are guaranteed to receive fast assistance, personalised advice and original parts for your CPD15TVL.

More and more companies are replacing their old equipment with 100% electric solutions like the CPD15TVL, appreciated for their compactness, quiet operation and reduced operating costs.

Choosing the CPD15TVL means choosing a sustainable alternative, without compromising on power, versatility and autonomy.

Thanks to our network of partners in the UK, you benefit from:

Fast delivery of trucks like the CPD15TVL
Qualified and responsive technical support
Constant availability of original spare parts

Ready to connect with your local dealer?

Get a QuoteRequest Info

FAQs

Common questions people ask about the CPD15TVL.

How long does the battery last on a single charge?
The 80V 150Ah lithium battery is designed for intensive, all-day use. Exact runtime depends on the application, but the fast-charging capability and support for partial top-ups mean you can keep the truck running through even the busiest shifts without downtime.
Do I need special charging infrastructure?
Not at all. The CPD15TVL has an integrated charger with a standard Schuko plug, so you can charge it from any regular UK wall socket. No dedicated charging stations or electrical upgrades required.
Can it handle narrow warehouse aisles?
Absolutely. With a turning radius of just 1,450mm and a compact 3-wheel layout, the CPD15TVL is purpose-built for tight spaces, narrow aisles, and confined loading areas.
What are the advantages over a lead-acid forklift?
Lithium LFP batteries last significantly longer, charge faster, require no watering or maintenance, and support partial charging without damaging the cells. Over the lifetime of the truck, you’ll see lower running costs and far less downtime.
