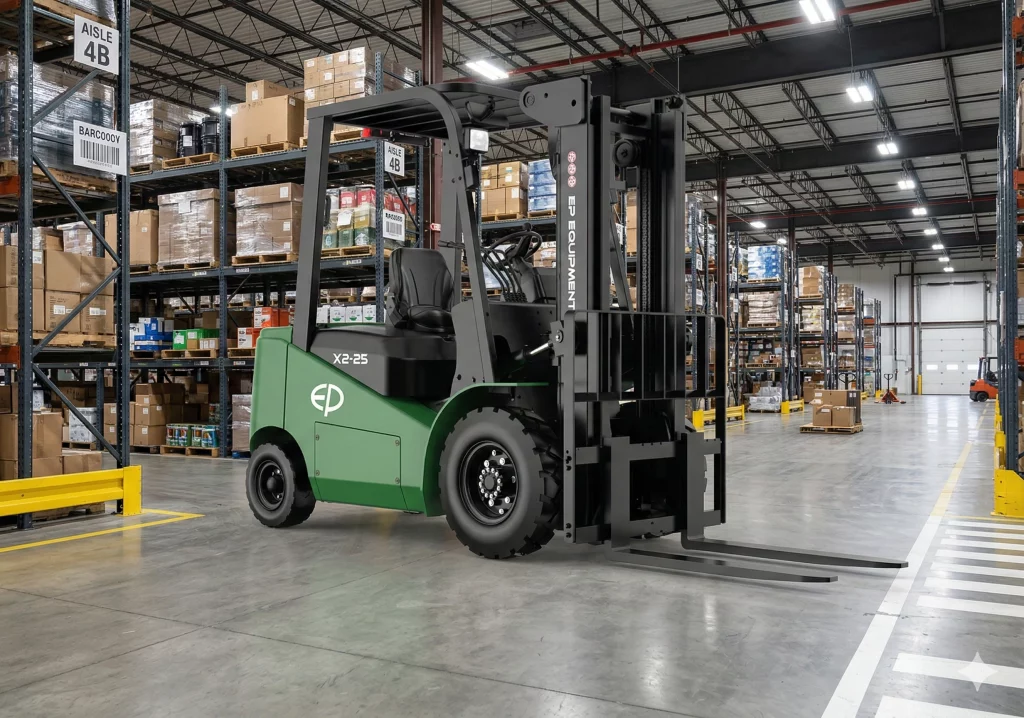

Li-ion Counterbalance Forklift Truck 2.5T
Estimated delivery within 1-2 weeks
3 year battery warranty
EP Store guaranteed local dealer
| Name | Value |
|---|---|
| Drive | Electric |
| Operator type | Seated |
| Rated capacity | 2500 kg |
| Load centre distance | 500 mm |
| Load distance, centre of drive axle to fork | 495 mm |
| Wheelbase | 1650 mm |
| Service weight | 4116 kg |
| Axle loading, laden front/rear | 5813/803 kg |
| Axle loading, unladen front/rear | 1805/2311 kg |
| Tyres | Solidrubber |
| Tyre size, front | 7.00-12 mm |
| Tyre size, rear | 18X7-8 mm |
| Wheels, number front/rear (x=drive wheels) | 2x/2 |
| Tread width, front | 975 mm |
| Tread width, rear | 955 mm |
| Max lift height | 4800 mm |
| Tilt of mast/fork carriage forward/backward | 6/10 ° |
| Height, mast lowered | 2090 mm |
| Overall height | 4025 |
| Free lift | 135 mm |
| Lift | 3000 mm |
| Height, mast extended | 4025 mm |
| Height of overhead guard (cabin) | 2170 mm |
| Seat height relating to SIP/stand height | 1100 mm |
| Coupling height | 445 mm |
| Overall length | 3598 mm |
| Length to face of forks | 2528 mm |
| Overall width | 1154 mm |
| Fork dimensions | 40×122×1070 mm |
| Fork carriage ISO 2328, class/type A, B | 2A |
| Fork carriage width | 1040 mm |
| Ground clearance, laden, below mast | 110 mm |
| Ground clearance, centre of wheelbase | 150 mm |
| Aisle width for pallets 1000×1200 crossways | 3953 Ast |
| Aisle width for pallets 800 × 1200 crossways | 4153 Ast |
| Turning radius | 2258 Wa |
| Travel speed, laden/unladen | 11/12 km/h |
| Lift speed, laden/unladen | 0.29/0.36 m/s |
| Lowering speed, laden/unladen | 0.4/0.43 m/s |
| Max. gradeability, laden/unladen | 15/15 % |
| Service brake | Hydraulic |
| Parking brake | Mechanical |
| Drive motor rating S2 60 min | 8 kW |
| Lift motor rating at S3 15% | 16 kW |
| Battery voltage | 80 V |
| Battery voltage/nominal capacity K5 | 100 Ah |
| Battery weight | 4116 kg |
| Turnover output according to VDI 2198 | Turnover output according to VDI 2198 |
| Turnover efficiency according to VDI 2198 | Turnover efficiency according to VDI 2198 |
| Type of drive unit | PMSM |
| Steering design | Hydraulic |
| Sound pressure level at the driver's seat | <74 dB(A) |
| Charger output current | 8 A |
Explore the EFL252X2
Efficient PMSM motor
Maintenance-free Li-Ion
Comfortable & ergonomic
Indoor & outdoor use
East Anglia
We have dealers in this area!
Scotland
We have dealers in this area!
North East
We have dealers in this area!
North West
We have dealers in this area!
Yorkshire & the Humber
We have dealers in this area!
East Midlands
We have dealers in this area!
West Midlands
We have dealers in this area!
Midlands
We have dealers in this area!
Wales
We have dealers in this area!
South West
We have dealers in this area!
Dorset
We have dealers in this area!
South East
We have dealers in this area!
London
We have dealers in this area!
Northern Ireland
We have dealers in this area!
Our dedicated sales and support network for the EFL252X2
With the support of EP Equipment distributors spread across the UK, you are guaranteed to receive fast assistance, personalised advice and original parts for your EFL252X2.
More and more companies are replacing their old equipment with 100% electric solutions like the EFL252X2, appreciated for their compactness, quiet operation and reduced operating costs.
Choosing the EFL252X2 means choosing a sustainable alternative, without compromising on power, versatility and autonomy.
Thanks to our network of partners in the UK, you benefit from:
- Fast delivery of trucks like the EFL252X2
- Qualified and responsive technical support
- Constant availability of original spare parts
FAQs
What are the main differences between the EFL X2 Series and traditional diesel forklifts?
The EFL X2 Series provides the same power and durability as diesel forklifts but with zero emissions, lower noise, and minimal maintenance. Its Li-ion system eliminates oil changes and fuel costs, offering a cleaner, more economical alternative for small and medium operations.
What type of battery and charging system does the EFL X2 use?
Each model is equipped with an 80V/100Ah Li-ion battery and a 35A onboard charger, allowing plug-and-play charging using any standard power outlet. The Li-ion system supports opportunity charging, ensuring consistent uptime without battery swapping or maintenance
Can the EFL X2 Series be used outdoors?
Yes. The waterproof chassis, pneumatic tires, and high ground clearance make the EFL X2 Series ideal for outdoor use on uneven terrain or in humid environments. Its robust frame and sealed components ensure reliable performance in all weather conditions.
How does the EFL X2 improve operator comfort and usability?
The forklift features an ergonomic suspended seat, adjustable steering column, and proportional lift controls for precise, fatigue-free operation. The quiet PMSM motor and smooth hydraulic response enhance operator comfort and concentration throughout long shifts.
What kind of applications is the EFL X2 Series best suited for?
The EFL X2 Series is perfect for light- to medium-duty operations such as warehousing, retail logistics, rental fleets, and general manufacturing. It’s a simple, reliable, and cost-effective solution for businesses upgrading from diesel or second-hand trucks to modern Li-ion technology
