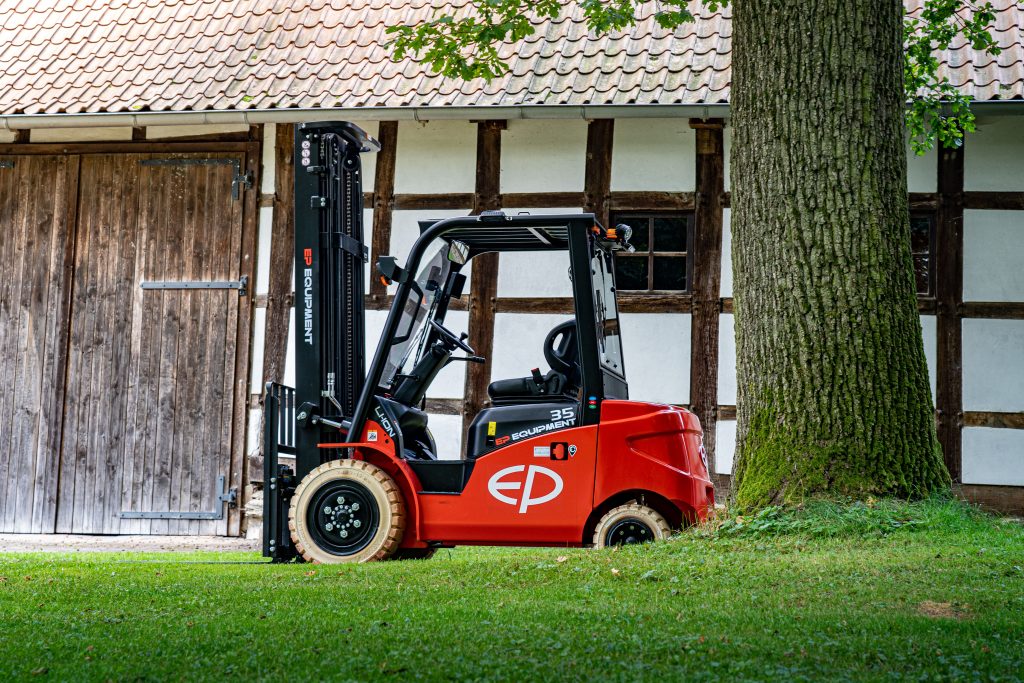

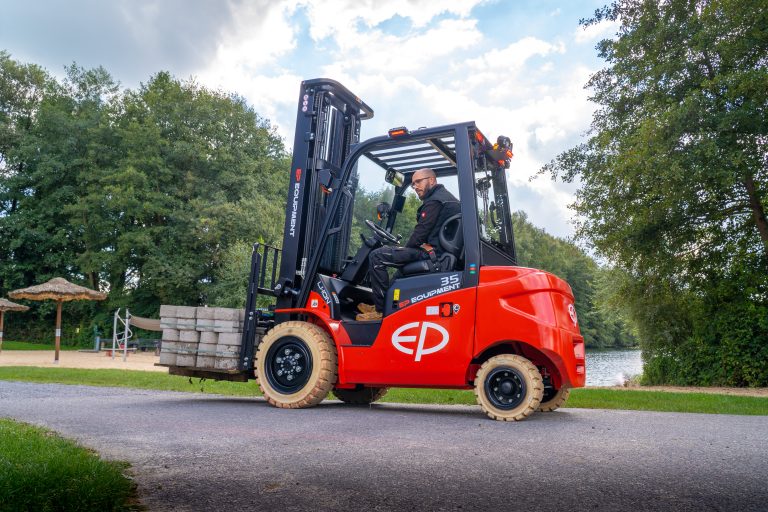

Li-ion Counterbalance Forklift Truck 3.5T
Estimated delivery within 1-2 weeks
3 year battery warranty
EP Store guaranteed local dealer
Capacity
3500 kg
Lift height
2700-6000 mm
Battery
280 Ah 80 V
Fork dimensions
50X122X1070 mm
Ground clearance
130 mm
Optional
280 Ah Li-Ion
| Name | Value |
|---|---|
| Manufacturer | EP |
| Model designation | EFL353 |
| Drive | Electric |
| Operator type | Seated |
| Rated capacity | 3500 kg |
| Load centre distance | 500 mm |
| Load distance, centre of drive axle to fork | 486 mm |
| Wheelbase | 1740 mm |
| Service weight | 4570 kg |
| Axle loading, laden front/rear | 7415/655 kg |
| Axle loading, unladen front/rear | 1930/2640 kg |
| Tyres | Solidrubber |
| Tyre size, front | 28x9-15 mm |
| Tyre size, rear | 200/50-10 mm |
| Wheels, number front/rear (x=drive wheels) | 2X-2 |
| Tread width, front | 1010 mm |
| Tread width, rear | 955 mm |
| Max lift height | 6000 mm |
| Tilt of mast/fork carriage forward/backward | 6/10 ° |
| Height, mast lowered | 2070 mm |
| Free lift | 135 mm |
| Lift | 3000 mm |
| Height, mast extended | 4095 mm |
| Height of overhead guard (cabin) | 2180 mm |
| Seat height relating to SIP/stand height | 1110 mm |
| Coupling height | 345 mm |
| Overall length | 3688 mm |
| Length to face of forks | 2618 mm |
| Overall width | 1210 mm |
| Fork dimensions | 50X122X1070 mm |
| Fork carriage ISO 2328, class/type A, B | 3A |
| Fork carriage width | 1100 mm |
| Ground clearance, laden, below mast | 130 mm |
| Ground clearance, centre of wheelbase | 185 mm |
| Aisle width for pallets 1000×1200 crossways | 4091 mm |
| Aisle width for pallets 800 × 1200 lengthways | 4291 mm |
| Turning radius | 2405 mm |
| Travel speed, laden/unladen | 11/12 km/h |
| Lift speed, laden/unladen | 0.28/0.36 m/s |
| Lowering speed, laden/unladen | 0.43/0.44 m/s |
| Max. gradeability, laden/unladen | 15/15 % |
| Service brake | Hydraulic |
| Parking brake | Mechanical |
| Drive motor rating S2 60 min | 10 kW |
| Lift motor rating at S3 15% | 16 kW |
| Battery nominal capacity K5 | 280 Ah |
| Battery voltage | 80 V |
| Battery type | Li-Ion |
| Battery weight | 186 kg |
| Energy consumption according to DIN EN 16796 | 7.5 kWh/h |
| Turnover output according to VDI 2198 | 224 |
| Turnover efficiency according to VDI 2198 | 30.18 |
| Type of drive unit | AC |
| Operating pressure for attachments | 180 bar |
| Oil volume for attachments | 35 â„“/min |
| Steering design | Hydraulic |
| Sound pressure level at the driver's seat | <74 dB(A) |
Matthew Wilson
Chris Bennett
Laura Jenkins
Andrew Collins
James Turner
Explore the EFL353
High-performance 3.5-ton lifting capacity
Fast charging and flexible operation for maximum uptime
Designed to replace diesel forklifts

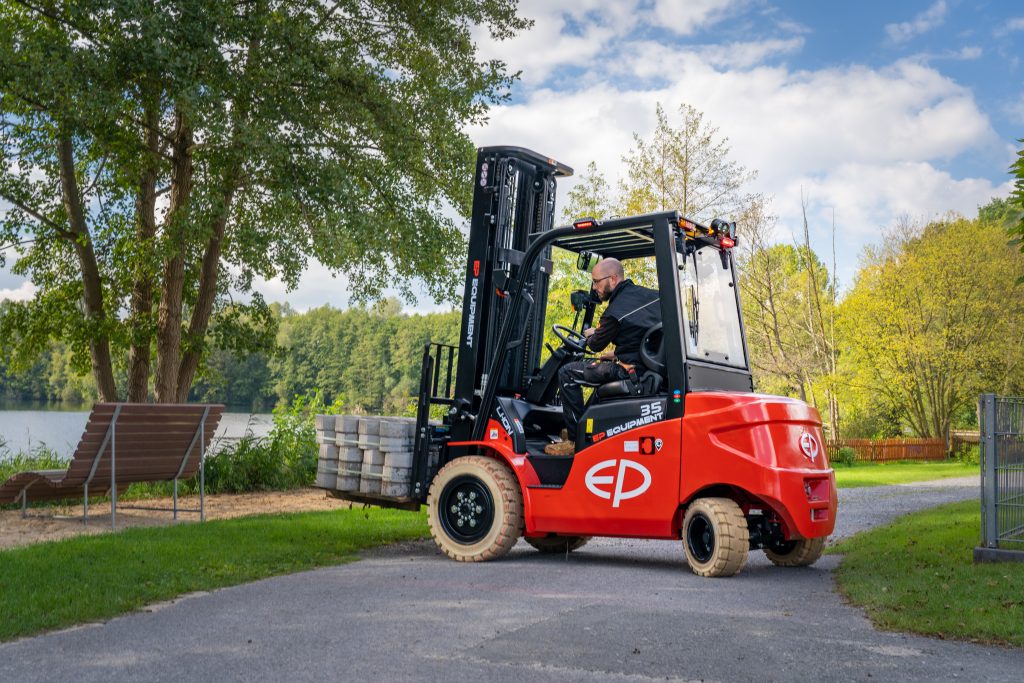

Reliable outdoor performance

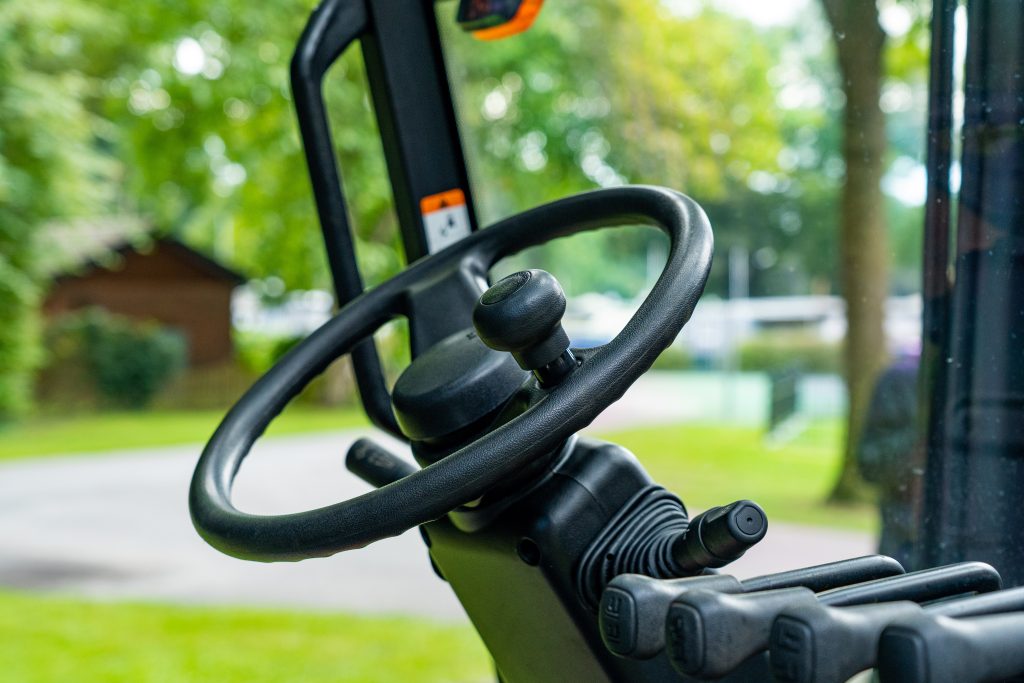

Comfortable and ergonomic workspace and Enhanced operator visibility
Lower operating and maintenance costs
East Anglia
We have dealers in this area!
Scotland
We have dealers in this area!
North East
We have dealers in this area!
North West
We have dealers in this area!
Yorkshire & the Humber
We have dealers in this area!
East Midlands
We have dealers in this area!
West Midlands
We have dealers in this area!
Midlands
We have dealers in this area!
Wales
We have dealers in this area!
South West
We have dealers in this area!
Dorset
We have dealers in this area!
South East
We have dealers in this area!
London
We have dealers in this area!
Northern Ireland
We have dealers in this area!
Our dedicated sales and support network for the EFL353
With the support of EP Equipment distributors spread across the UK, you are guaranteed to receive fast assistance, personalised advice and original parts for your EFL353.
More and more companies are replacing their old equipment with 100% electric solutions like the EFL353, appreciated for their compactness, quiet operation and reduced operating costs.
Choosing the EFL353 means choosing a sustainable alternative, without compromising on power, versatility and autonomy.
Thanks to our network of partners in the UK, you benefit from:
- Fast delivery of trucks like the EFL353
- Qualified and responsive technical support
- Constant availability of original spare parts
FAQs
What is the lifting capacity of the EFL353?
The EFL353 has a maximum lifting capacity of 3500 kg.
What battery technology does the EFL353 use?
It is equipped with an 80V lithium-ion battery system designed for fast charging and maintenance-free operation.

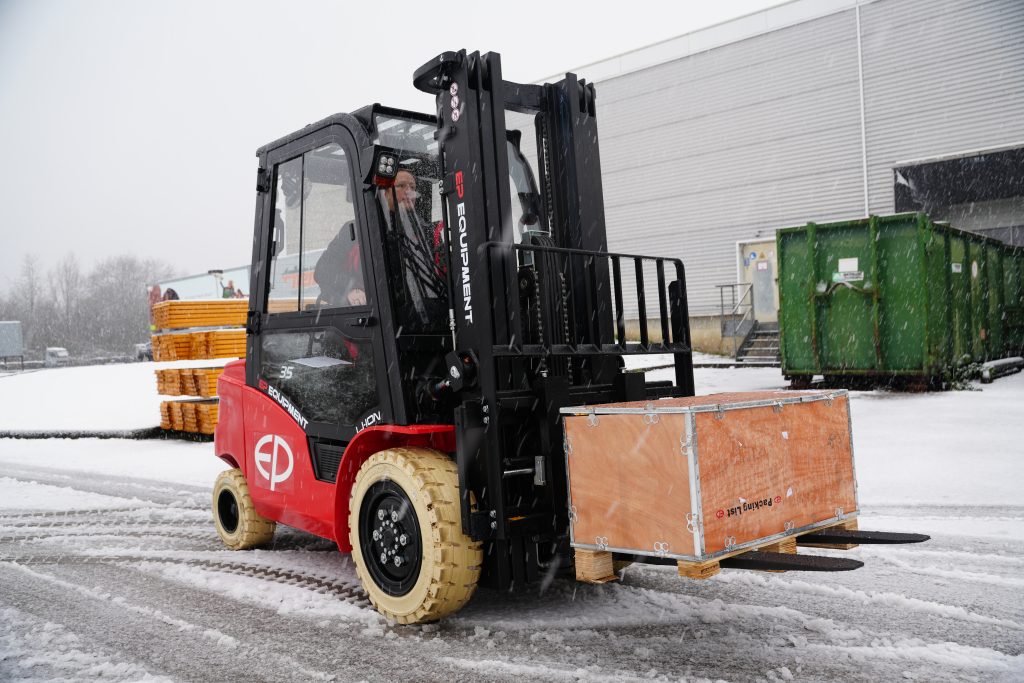

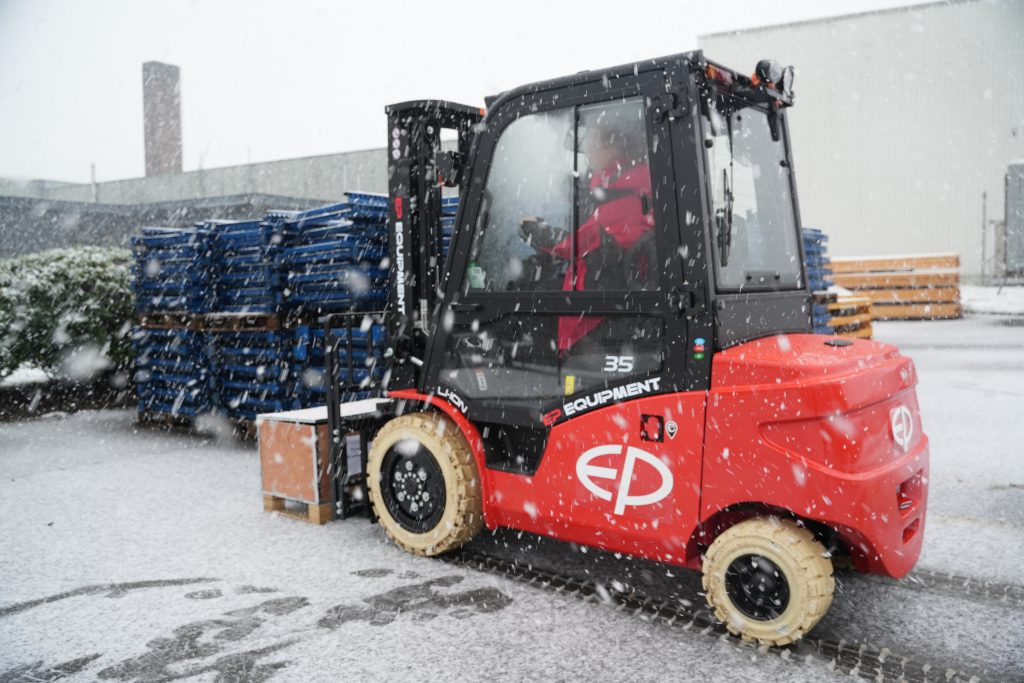

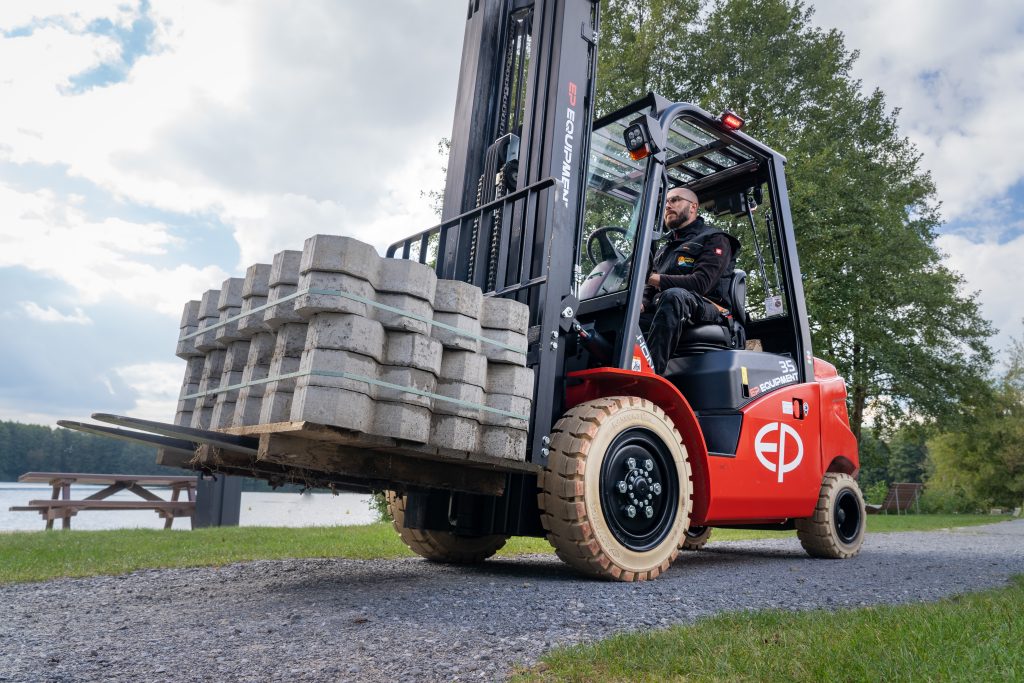

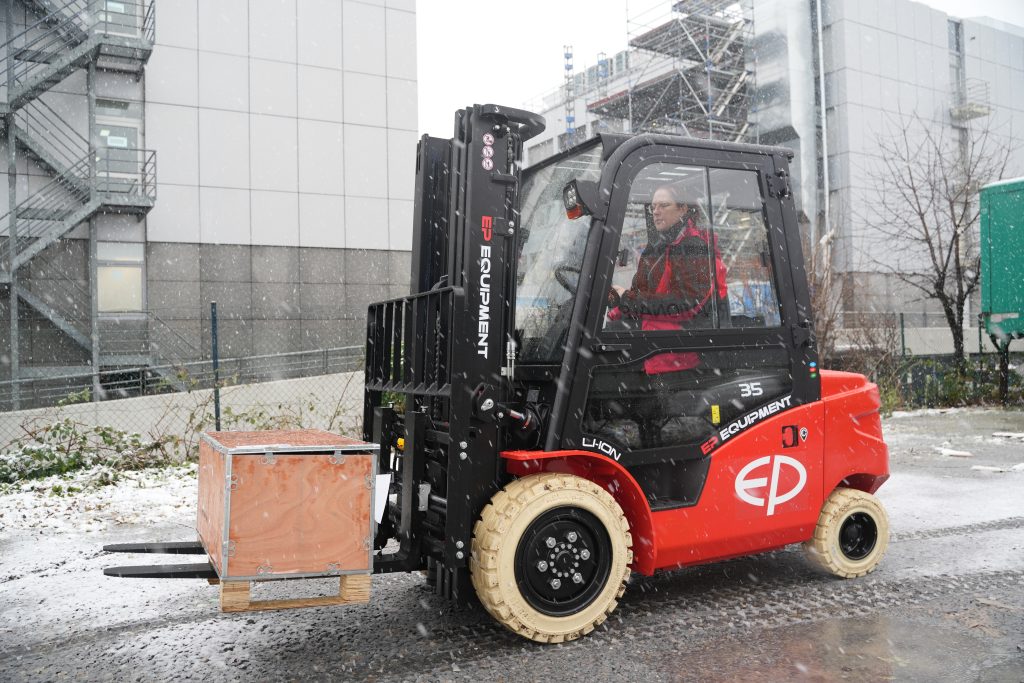

Is the EFL353 suitable for outdoor use?
Yes, the truck is specifically designed for both indoor and outdoor applications thanks to its robust chassis, high ground clearance, and solid tyres.
Can the EFL353 replace a diesel forklift?
Yes, the EFL353 is designed as a high-performance electric alternative to diesel and LPG forklifts, offering lower maintenance and operating costs.
Does it support opportunity charging?
Yes, the lithium battery allows opportunity charging during breaks or between shifts without affecting battery lifespan.
Is the forklift suitable for ramps and uneven surfaces?
Yes, its strong traction and stable chassis provide reliable performance on ramps and uneven outdoor terrain.
What industries is the EFL353 best suited for?
It is ideal for logistics, manufacturing, warehousing, construction supply, and industrial material handling operations.
How does lithium technology benefit operators?
Lithium technology reduces downtime, eliminates battery maintenance, provides consistent power, and lowers total operating costs.
What is the maximum lifting height?
Depending on mast configuration, the EFL353 can reach lifting heights up to 6000 mm.
