Forklifts

Electric pallet truck 1500kg

£999

£899

3 reviews

The F4 is the smarter upgrade from your manual pallet truck. At just 120 kg with a 1,500 kg load capacity, it brings powered performance to delivery drivers, small warehouses, and retail floors without giving up the simplicity and manoeuvrability you rely on. Less effort, same ease of use, and a whole lot more efficiency.

Get a QuoteRequest Info

Or download datasheet

Estimated delivery within 1-2 weeks

3 year battery warranty

EP Store guaranteed local dealer

Capacity
1500 kg

Lift height
105 mm

Battery
20 Ah 24 V (Li-Ion)

Fork dimensions
1150 mm

Velocity
4.5 km/h

Optional
2nd li-ion battery

Name	Value
Operator type	Pedestrian
Rated capacity	1500 kg
Load centre distance	600 mm
Load distance, centre of drive axle to fork	950 mm
Wheelbase	1180 mm
Service weight	120 kg
Axle loading, laden front/rear	480/1140 kg
Axle loading, unladen front/rear	90/30 kg
Tyres	Polyurethane
Tyre size, front	210x70 mm
Tyre size, rear	80x60 mm
Wheels, number front/rear (x=drive wheels)	1x —/4
Tread width, rear	410 (535) mm
Max lift height	105 mm
Lift	105 mm
Overall length	1550 mm
Length to face of forks	400 mm
Overall width	590 (695) mm
Fork dimensions	55/150/1150 mm
Ground clearance, centre of wheelbase	25 mm
Aisle width for pallets 1000×1200 crossways	2160 Ast
Aisle width for pallets 800 × 1200 crossways	2025 Ast
Turning radius	1360 Wa
Travel speed, laden/unladen	4/4.5 km/h
Lift speed, laden/unladen	0.017/0.020 m/s
Lowering speed, laden/unladen	0.058/0.046 m/s
Max. gradeability, laden/unladen	6/16 %
Service brake	Electromagnetic
Drive motor rating S2 60 min	0.75 kW
Lift motor rating at S3 15%	0.5 kW
Battery voltage	24 V
Battery voltage/nominal capacity K5	20 Ah
Battery type	Li-Ion
Battery weight	5 kg
Steering design	Mechanical
Sound pressure level at the driver's seat	74 dB(A)

Matt R.

Verified buyer

We bought the F4 pallet truck to replace our manual one, and the difference was clear straight away - less effort for our team and much quicker loading and unloading. Great value for money.

Colin C.

Verified buyer

The F4 is compact, light, and easy to handle - exactly what we need working in tight warehouse spaces with frequent loads. The dual battery system means no downtime, and charging it up is super simple.

Jake T.

Verified buyer

We chose the F4 electric pallet jack for its flexibility and ease of use in our tight storage areas. With two removable battery packs, it’s always ready to go and handles even the busiest shifts. It’s become an essential piece of equipment in our warehouse.

Explore the F4

The F4 fits anywhere the work takes it. A compact 400 mm fork face and lightweight build make tight spaces easy to navigate, whether that is a shop floor or a busy loading dock. Dual battery slots keep it running through long shifts without downtime, and optional stabilising wheels add extra confidence when handling heavier loads. From retail to intensive logistics, the F4 is ready.

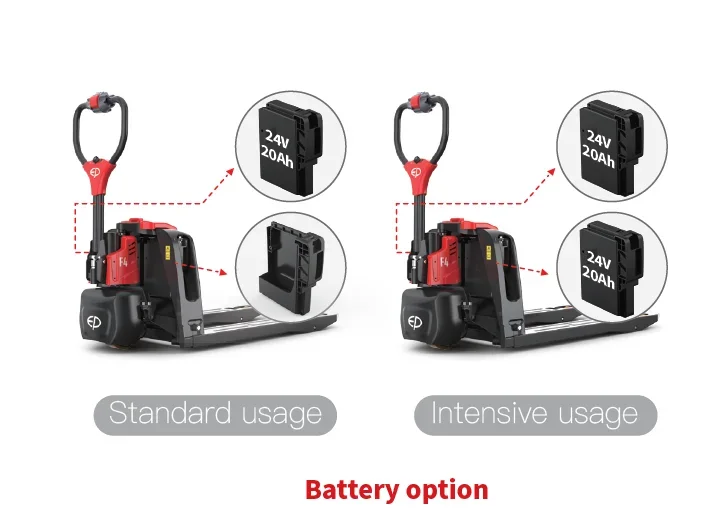

Flexible battery system

Compact & lightweight

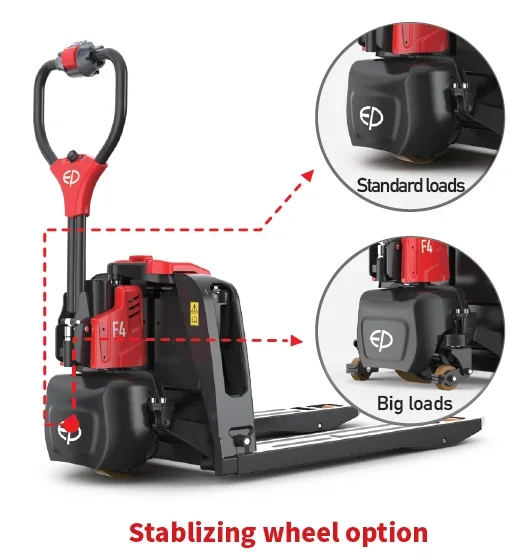

Optional stabilising wheels

Customisable forks

Our dedicated sales and support network for the F4

With the support of EP Equipment distributors spread across the UK, you are guaranteed to receive fast assistance, personalised advice and original parts for your F4.

More and more companies are replacing their old equipment with 100% electric solutions like the F4, appreciated for their compactness, quiet operation and reduced operating costs.

Choosing the F4 means choosing a sustainable alternative, without compromising on power, versatility and autonomy.

Thanks to our network of partners in the UK, you benefit from:

Fast delivery of trucks like the F4
Qualified and responsive technical support
Constant availability of original spare parts

Ready to connect with your local dealer?

Get a QuoteRequest Info

FAQs

Common questions people ask about the F4.

What makes the F4 different from other pallet trucks?
The F4 is designed as an all-rounder, with multiple fork sizes, optional stabilising wheels, and up to four removable Li-ion batteries, making it adaptable to both light and intensive applications.
How many batteries does the F4 support?
The F4 can be equipped with up to two 24V/20Ah Li-ion batteries in standard use, and up to four batteries as an option, ensuring maximum uptime for full-shift operations.
Is the F4 suitable for narrow aisles?
Yes. With a compact fork face length of just 400 mm and a reduced service weight of 120 kg, the F4 is highly manoeuvrable in tight and confined spaces.
What safety features does the F4 offer?
The F4 can be fitted with stabilising wheels to reduce the risk of tipping on uneven surfaces and heavy loads, improving operator safety and load stability.
In what environments is the F4 most effective?
The F4 is versatile and can be used in retail, warehouses, and logistics centers. It is suitable for occasional handling as well as intensive, full-shift applications thanks to its modular battery system.
