1200kg Electric Pedestrian Stacker Straddle

£4,999

£4,250

All pricing excl. VAT

5 reviews

The ESA121 Mono is the ideal entry-level solution for retail, workshops, and commerce businesses focused on ground handling and lower rack levels. With a compact chassis width of just 826 mm and precise creep speed control, it excels at navigating narrow aisles and tight storage areas. This robust stacker combines a reinforced chassis with an ergonomic tiller, ensuring operator comfort and safe handling during repetitive daily operations. Precision Handling for Narrow Aisles and Retail: Ultra-Compact Build: Only 826 mm wide for maximum maneuverability in tight spaces. Total Control: Creep speed function for safe, precise movement in high-traffic areas. Ergonomic Design: Reinforced chassis and comfortable tiller for repetitive handling tasks. Versatile Energy: Integrated charger with a choice of Li-ion or AGM battery power.

Lift Height

Get a QuoteRequest Info

Or download datasheet

Estimated delivery within 1-2 weeks

3 year battery warranty

EP Store guaranteed local dealer

Capacity
1200 kg

Lift height
1991 mm

Battery
105 Ah 24 V

Fork dimensions
570 x 1150 mm

Ground clearance
30 mm

Optional
105 Ah Li-Ion

Name	Value
Manufacturer	EP
Model designation	ESA121-M
Drive	Electric
Operator type	Pedestrian
Rated capacity	1200 kg
Load centre distance	600 mm
Load distance, centre of drive axle to fork	808 mm
Wheelbase	1210 mm
Service weight	490 kg
Axle loading, laden front/rear	560/1130 kg
Axle loading, unladen front/rear	360/130 kg
Tyres	Polyurethane
Tyre size, front	Ø214×70 mm
Tyre size, rear	Ø80×61 mm
Additional wheels (castor wheels)	Ø130×55 mm
Wheels, number front/rear (x=drive wheels)	1x，1/4
Tread width, front	543 mm
Tread width, rear	400 mm
Max lift height	1953 mm
Height, mast lowered	1951 mm
Free lift	1530 mm
Lift	1530 mm
Height, mast extended	1991 mm
Height of overhead guard (cabin)	1991 mm
Seat height relating to SIP/stand height	90 mm
Height drawbar in driving position min./max.	760/1140 mm
Height of wheel arms	- mm
Height, lowered	90 mm
Overall length	1742 mm
Length to face of forks	592 mm
Overall width	826 mm
Fork dimensions	60/170/1150 mm
Fork carriage width	700 mm
Distance between fork-arms	570 mm
Distance between wheel arms/loading surfaces	-
Ground clearance, laden, below mast	- mm
Ground clearance, centre of wheelbase	23 mm
Aisle width for pallets 1000×1200 crossways	2282 mm
Aisle width for pallets 800 × 1200 lengthways	2212 mm
Turning radius	1452 mm
Travel speed, laden/unladen	4.0/4.5 km/h
Lift speed, laden/unladen	0.15/0.25 m/s
Lowering speed, laden/unladen	0.19/0.14 m/s
Max. gradeability, laden/unladen	3/10 %
Service brake	Electromagnetic
Parking brake	Electromagnetic
Drive motor rating S2 60 min	0.65 kW
Lift motor rating at S3 15%	3.0 kW
Battery nominal capacity K5	105 Ah
Battery voltage	24 V
Battery type	Li-Ion/AGM
Battery weight	61 kg
Energy consumption according to DIN EN 16796	- ¹⁾ kWh/h
Turnover output according to VDI 2198	-
Turnover efficiency according to VDI 2198	-
Type of drive unit	DC
Steering design	Mechanical
Sound pressure level at the driver's seat	74 dB(A)
Charger output current	15 A

ESA121-M Electric Pedestrian Stacker Mono Mast 1.2T

Tom Bradley

Verified buyer

Perfect for our stockroom. It fits easily in tight aisles and is very straightforward to use for the team.

Emma Collins

Verified buyer

Good entry-level stacker. Reliable and compact, ideal for lighter warehouse tasks.

Daniel Wright

Verified buyer

Exactly what we needed for moving pallets around the workshop. Simple, efficient and no unnecessary complexity.

Sophie Turner

Verified buyer

Works very well in our small fulfilment space. The size and manoeuvrability are big advantages.

James Carter

Verified buyer

Easy to operate and maintain. A great solution for businesses that don’t need a larger or more expensive

Explore the ESA121-M

The ESA121-M is perfectly suited for light-duty material handling in environments where space is limited and manoeuvrability is essential. It is widely used in: Retail stores and stockrooms Small warehouses and distribution areas Workshops and service centres Fulfilment operations Thanks to its compact dimensions and pedestrian operation, it performs exceptionally well in narrow aisles, confined storage areas, and high-traffic environments. It is particularly effective for ground-level handling and stacking at lower heights, making it a practical solution for businesses looking for a simple and cost-efficient electric stacker.

Compact design for narrow aisles

1200 kg lifting capacity for daily operations

Precise creep speed control

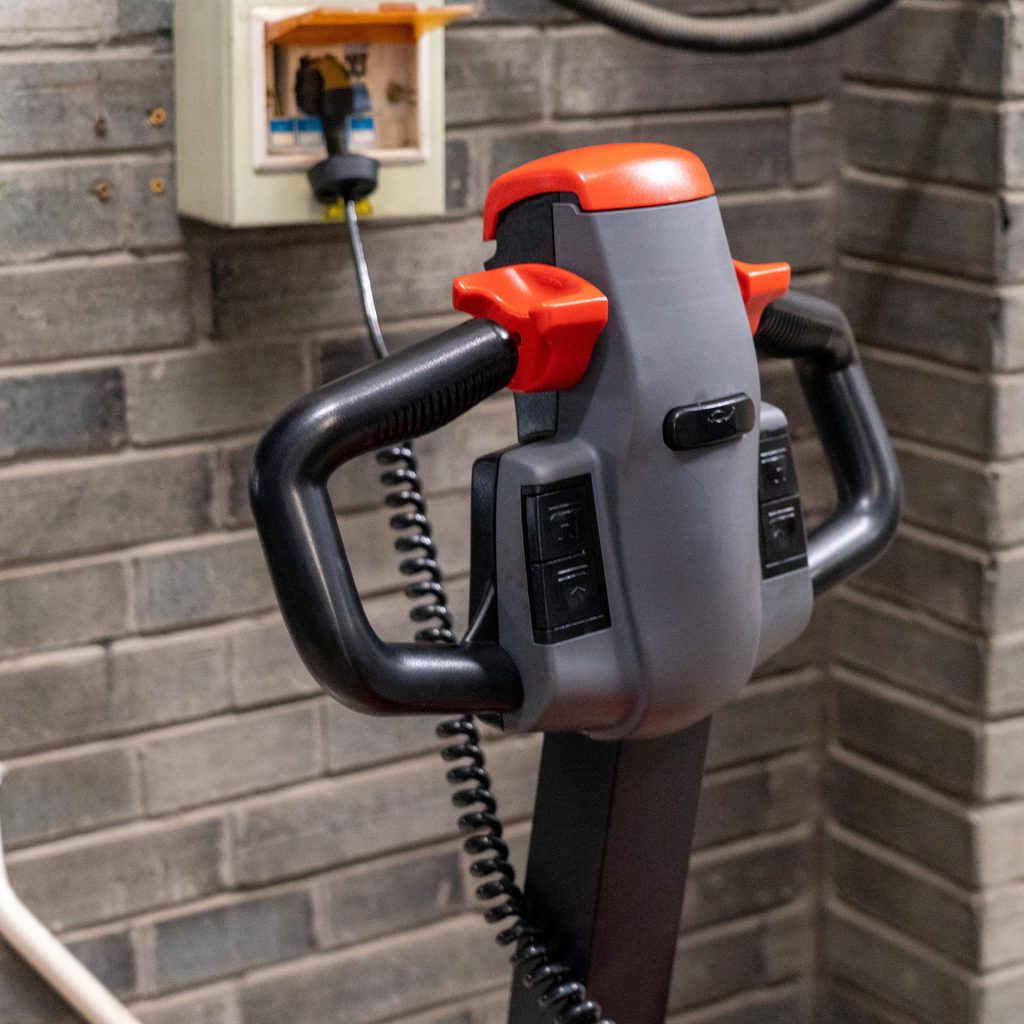

Ergonomic tiller for operator comfort

Integrated charger for easy charging

Robust and durable construction

Our dedicated sales and support network for the ESA121-M

With the support of EP Equipment distributors spread across the UK, you are guaranteed to receive fast assistance, personalised advice and original parts for your ESA121-M.

More and more companies are replacing their old equipment with 100% electric solutions like the ESA121-M, appreciated for their compactness, quiet operation and reduced operating costs.

Choosing the ESA121-M means choosing a sustainable alternative, without compromising on power, versatility and autonomy.

Thanks to our network of partners in the UK, you benefit from:

Fast delivery of trucks like the ESA121-M
Qualified and responsive technical support
Constant availability of original spare parts

Ready to connect with your local dealer?

Get a QuoteRequest Info

FAQs

Common questions people ask about the ESA121-M.

What is the maximum lifting capacity?
The ESA121-M can lift up to 1200 kg, making it suitable for standard pallet handling tasks.
What is the maximum lifting height?
The maximum lift height is 1530 mm, ideal for ground-level handling and lower racking systems.
Is it suitable for narrow aisles?
Yes, with a width of 826 mm and a compact turning radius, it is specifically designed for tight spaces.
What type of battery does it use?
It is available with either a lithium-ion or AGM battery, depending on your preference and usage.
How is the stacker charged?
The integrated charger allows you to plug the machine into a standard UK socket for easy charging.
Is it easy to operate?
Yes, the ergonomic tiller and intuitive controls make it suitable for operators of all experience levels.
Who is this stacker best suited for?
It is ideal for retail businesses, small warehouses, workshops, and e-commerce operations requiring a compact and efficient handling solution.
