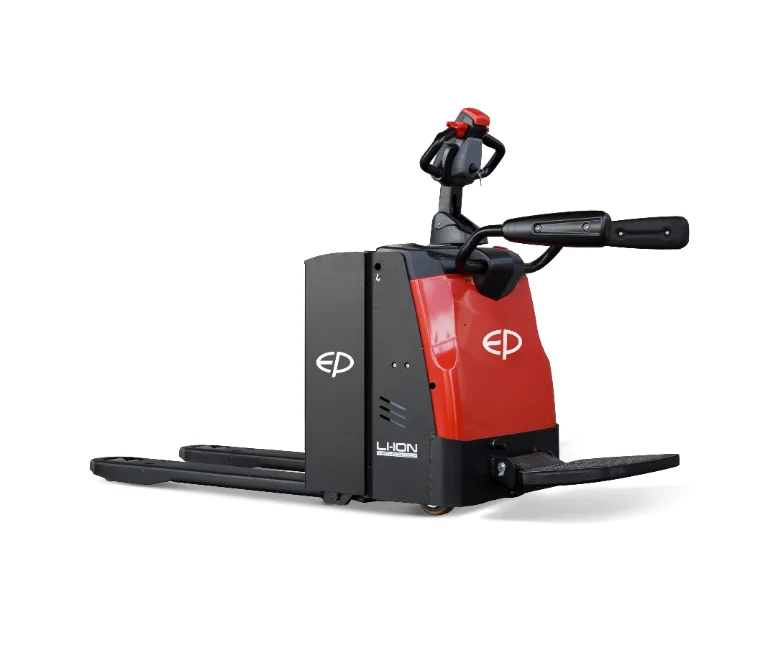

RPL201H Heavy-Duty Ride-On Pallet Truck H 2.0T
RPL201H Heavy-Duty Ride-On Pallet Truck H 2.0T
Forklifts

Heavy-Duty Ride-On Pallet Truck H 2.0T

£7,999
£7,499
All pricing excl. VAT
5 reviews
The RPL201(H) ride-on electric pallet truck from EP Equipment is built for high-intensity operations and long-distance transport. With a 2000 kg capacity, high-speed performance, and a powerful lithium battery, it is the ideal solution for large warehouses and logistics hubs across the UK.
Get a QuoteRequest Info

Estimated delivery within 1-2 weeks

3 year battery warranty

EP Store guaranteed local dealer

Capacity
2000 kg

Lift height
120 mm

Battery
210|205 Ah 24 V (Li-Ion)

Fork dimensions
1150 mm

Ground clearance
30 mm

NameValue
ManufacturerEP
Model designationRPL201H
DriveElectric
Operator typeStanding
Rated capacity2000 kg
Load centre distance600 mm
Load distance, centre of drive axle to fork980 mm
Wheelbase1531 mm
Service weight670|755 kg
Axle loading, laden front/rear1060/1610|1090/1665 kg
Axle loading, unladen front/rear540/130|600/155 kg
TyresPolyurethane
Tyre size, frontФ230x75 mm
Tyre size, rearФ85x70/Ф83x115 mm
Additional wheels (castor wheels)Ф130x55 mm
Wheels, number front/rear (x=drive wheels)1x+2/4/1x+2/2
Tread width, front510 mm
Tread width, rear370/515 mm
Max lift height120 mm
Lift120 mm
Height drawbar in driving position min./max.1075/1288
Height, lowered85
Overall length1954 mm
Length to face of forks804 mm
Overall width734 mm
Fork dimensions55x170x1150 mm
Ground clearance, centre of wheelbase30 mm
Aisle width for pallets 1000×1200 crossways2606 Ast
Aisle width for pallets 800 × 1200 crossways2463 Ast
Turning radius1806 Wa
Travel speed, laden/unladen9/12 km/h
Lift speed, laden/unladen0.050/0.054 m/s
Lowering speed, laden/unladen0.067/0.054 m/s
Max. gradeability, laden/unladen8/16 %
Service brakeElectromagnetic
Drive motor rating S2 60 min1.6 kW
Lift motor rating at S3 15%2.2 kW
Battery nominal capacity K5210|205 Ah
Battery voltage24 V
Battery typeLead Acid/Li-ion
Battery weight195|62 kg
Type of drive unitAC
Steering designElectronic
Sound pressure level at the driver's seat74 dB(A)
RPL201H Heavy-Duty Ride-On Pallet Truck H 2.0T

Michael Turner

Verified buyer
We use the RPL201 daily for long runs across our warehouse. The ride-on platform makes a huge difference for operator fatigue.

Laura Jenkins

Verified buyer
Very efficient truck, especially for high-volume operations. The speed and battery performance are exactly what we needed.

Kevin Brooks

Verified buyer
Solid machine with good handling. The safety features like speed reduction in corners are a nice touch.

Andrew Foster

Verified buyer
Perfect for our site where distances are quite long. It has improved our overall productivity.

Richard Davies

Verified buyer
Reliable and easy to use. Charging is quick and fits well into our shift patterns.

Explore the RPL201H

The RPL201(H) is designed for operations where efficiency, speed, and operator comfort are critical. Built to handle loads of up to 2000 kg, this ride-on pallet truck is particularly suited for large-scale warehouses, distribution centres, and logistics platforms where operators need to move goods over longer distances throughout the day. Its foldable operator platform and protective side arms provide both comfort and safety during extended use, while the high-speed configuration significantly improves productivity in demanding environments. Powered by a 24V lithium-ion battery with external charging, the RPL201(H) supports fast and opportunity charging, making it ideal for multi-shift operations. Combined with intelligent features such as proportional steering and automatic speed reduction in corners, it ensures safe and controlled handling at all times. This model is a strong choice for UK businesses looking to optimise internal transport, reduce manual handling strain, and increase throughput in busy operations.

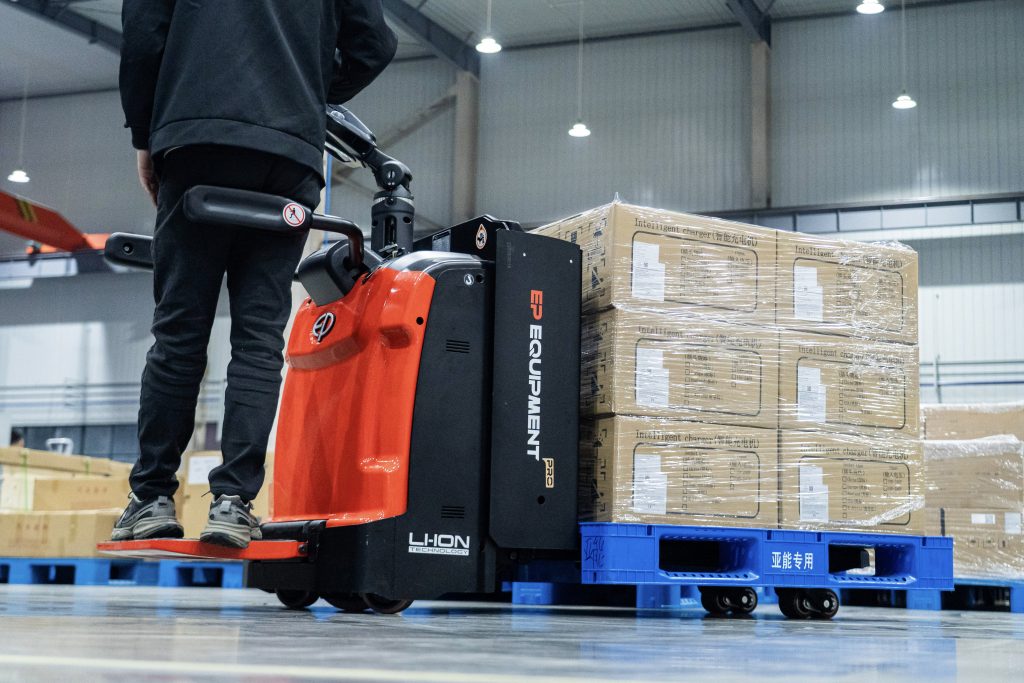

Built for long-distance transport

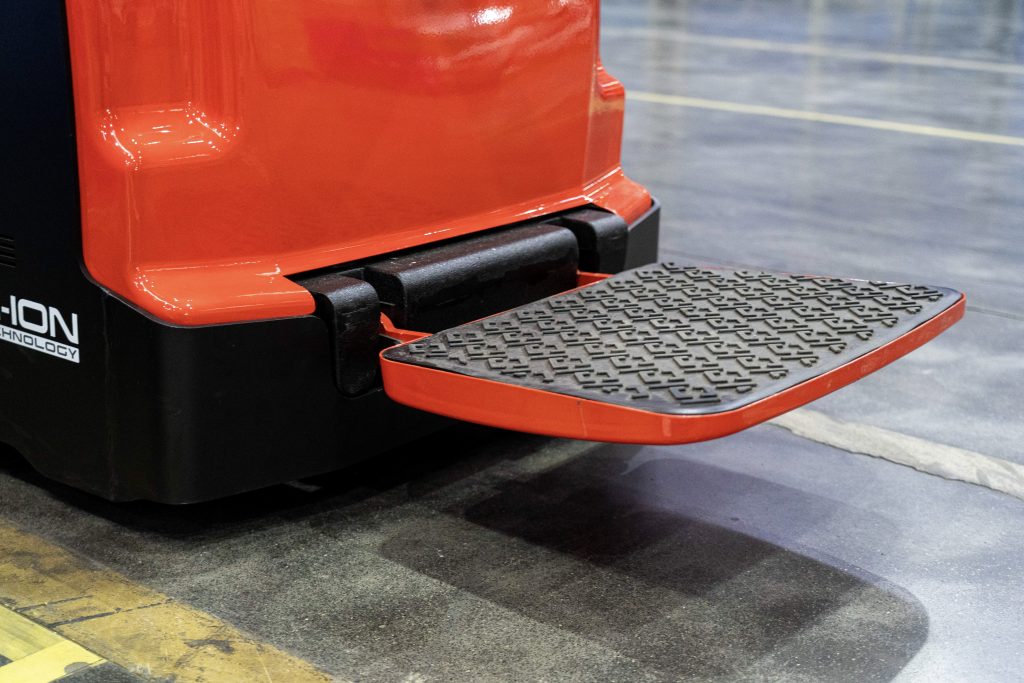

Operator comfort and safety

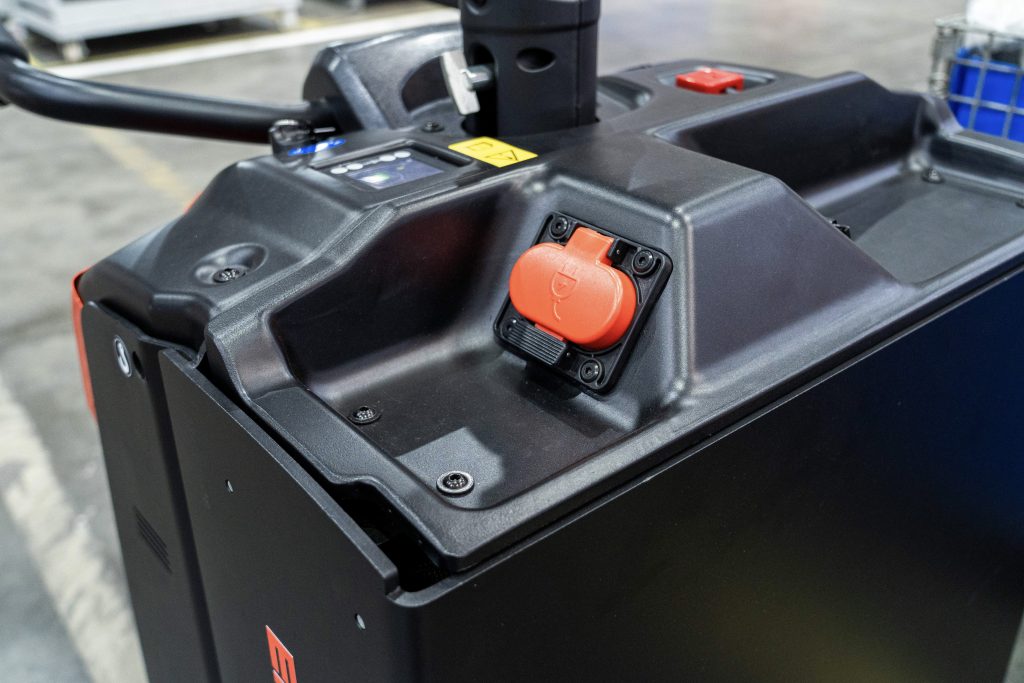

Lithium battery for maximum uptime

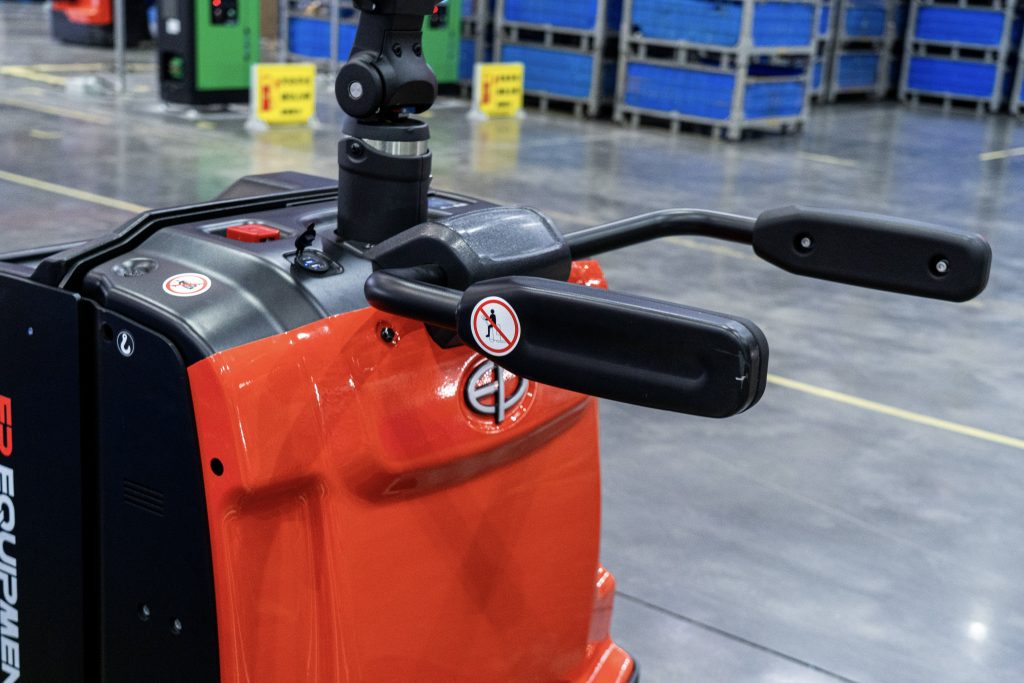

Precise and intuitive control

Strong and durable construction

Versatile in tight and open spaces

East Anglia

We have dealers in this area!

Scotland

We have dealers in this area!

North East

We have dealers in this area!

North West

We have dealers in this area!

Yorkshire & the Humber

We have dealers in this area!

East Midlands

We have dealers in this area!

West Midlands

We have dealers in this area!

Midlands

We have dealers in this area!

Wales

We have dealers in this area!

South West

We have dealers in this area!

Dorset

We have dealers in this area!

South East

We have dealers in this area!

London

We have dealers in this area!

Northern Ireland

We have dealers in this area!

Our dedicated sales and support network for the RPL201H

With the support of EP Equipment distributors spread across the UK, you are guaranteed to receive fast assistance, personalised advice and original parts for your RPL201H.

More and more companies are replacing their old equipment with 100% electric solutions like the RPL201H, appreciated for their compactness, quiet operation and reduced operating costs.

Choosing the RPL201H means choosing a sustainable alternative, without compromising on power, versatility and autonomy.

Thanks to our network of partners in the UK, you benefit from:

  • Fast delivery of trucks like the RPL201H
  • Qualified and responsive technical support
  • Constant availability of original spare parts
