Compact counter balance 3 wheels forklift

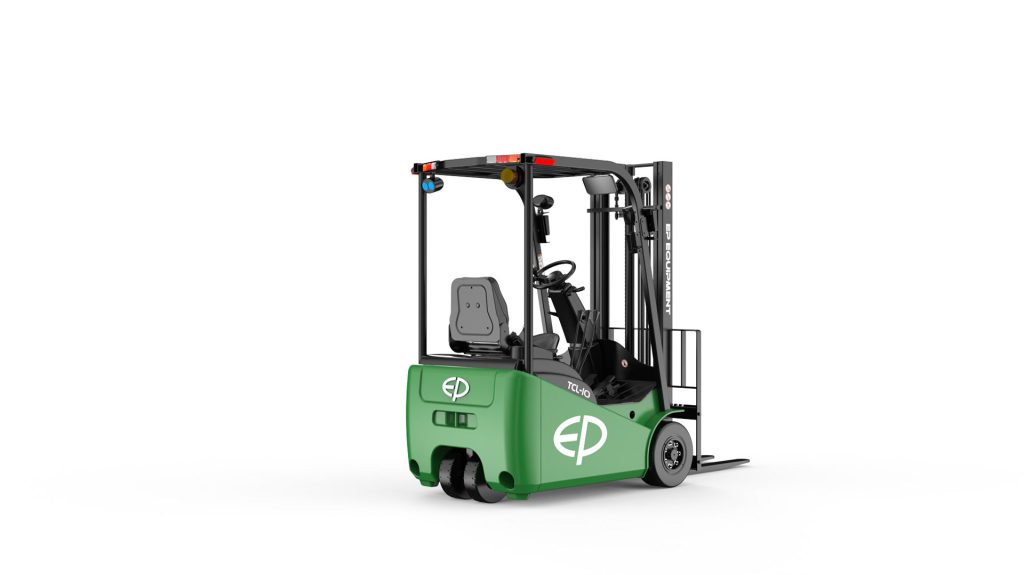

TCL- 3-Wheel Dual-drive Supercompact Counterbalance Forklift 1000 kg
TCL- 3-Wheel Dual-drive Supercompact Counterbalance Forklift 1000 kg
TCL101 Moteur
Forklifts

3-Wheel Dual-drive Counterbalance Forklift 1000 kg

£13,999
£12,999
All pricing excl. VAT
5 reviews

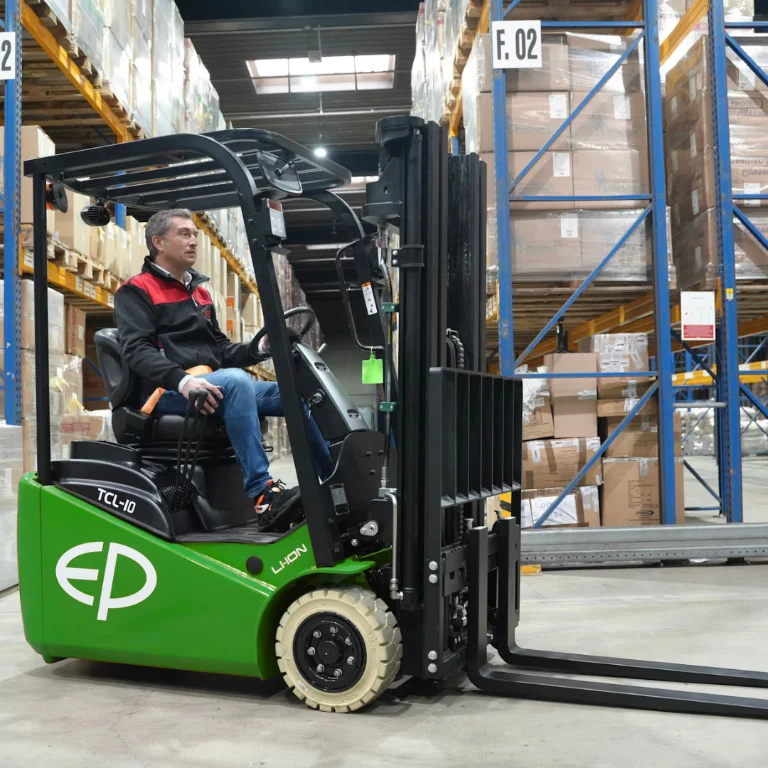

The TCL101 is a compact 3-wheel electric forklift with 80V lithium-ion technology, designed for tight indoor environments and multi-level operations. With a 1000 kg capacity, ultra-low overhead height, and exceptional manoeuvrability, it is the ideal solution for businesses operating in confined spaces across the UK.
Get a QuoteRequest Info

Estimated delivery within 1-2 weeks

3 year battery warranty

EP Store guaranteed local dealer

Capacity
1000 kg

Lift height
2700 mm

Battery
150 Ah 80 V

Fork dimensions
100 x 40 x 920 mm

Ground clearance
89 mm

Velocity
14 km/h

NameValue
ManufacturerEP
Model designationTCL101
DriveElectric
Operator typeSeated operator
Rated capacity1000 kg
Load centre distance500 mm
Load distance, centre of drive axle to fork310 mm
Wheelbase1200 mm
Service weight1985 kg
Axle loading, laden front/rear2546/439 kg
Axle loading, unladen front/rear871/1114 kg
TyresSolid rubber
Tyre size, front16X6-8 mm
Tyre size, rear3.5-5 mm
Wheels, number front/rear (x=drive wheels)2X/2
Tread width, front838 mm
Tread width, rear208 mm
Max lift height4500 mm
Tilt of mast/fork carriage forward/backward6/6 °
Height, mast lowered1990 mm
Overall height3919 mm
Free lift120 mm
Lift3000 mm
Height, mast extended3919 mm
Height of overhead guard (cabin)1968 mm
Seat height relating to SIP/stand height925 mm
Coupling height483 mm
Overall length2434 mm
Length to face of forks1684 mm
Overall width1020 mm
Fork dimensions35X100X920 mm
Fork carriage ISO 2328, class/type A, B2A
Fork carriage width960 mm
Ground clearance, laden, below mast93 mm
Ground clearance, centre of wheelbase89 mm
Aisle width for pallets 1000×1200 crossways2804 mm
Aisle width for pallets 800 × 1200 lengthways3026 mm
Turning radius1422 mm
Travel speed, laden/unladen11/13 km/h
Lift speed, laden/unladen0.28/0.35 m/s
Lowering speed, laden/unladen0.32/0.36 m/s
Max. gradeability, laden/unladen13/15 %
Service brakeElectromagnetic
Parking brakeElectromagnetic
Drive motor rating S2 60 min2.0x2 kW
Lift motor rating at S3 15%7 kW
Battery nominal capacity K550 Ah
Battery voltage80 V
Battery typeLi-Ion
Battery weight61 kg
Type of drive unitBLDC
Steering designHydraulic
Sound pressure level at the driver's seat68 dB(A)
Charger output current35 A
TCL- 3-Wheel Dual-drive Supercompact Counterbalance Forklift 1000 kg

Oliver Hughes

Verified buyer
We needed something compact for a multi-level site and the TCL101 fits perfectly. Very easy to manoeuvre and ideal for tight areas.

Ben Foster

Verified buyer
Smooth handling and very precise controls. Works well in narrow aisles and busy environments.

Rachel Green

Verified buyer
Great solution for our back-of-store operations. The low height allows us to use it where other forklifts simply wouldn’t fit.

Daniel Scott

Verified buyer
Compact, quiet and efficient. Perfect for indoor use and easy for the team to operate.

Chris Allen

Verified buyer
Excellent manoeuvrability. We use it across different floors and it performs reliably every day.

Explore the TCL101

The TCL101 is specifically designed for space-constrained working environments where agility and compactness are critical. It is particularly well suited for: Retail backrooms and stock areas Mezzanine floors and multi-level warehouses Freight elevators and goods lifts Workshops and small industrial sites Urban logistics and e-commerce fulfilment centres Its low overall height (under 2 metres) allows it to operate in areas where standard forklifts cannot, including buildings with restricted access or low ceilings. The three-wheel design and dual-drive system provide excellent manoeuvrability, making it easy to navigate around obstacles and in high-traffic indoor environments. The TCL101 is the ideal choice for businesses that need a compact forklift capable of working across multiple floors while maintaining safety and efficiency.

Ultra-compact design for restricted environments

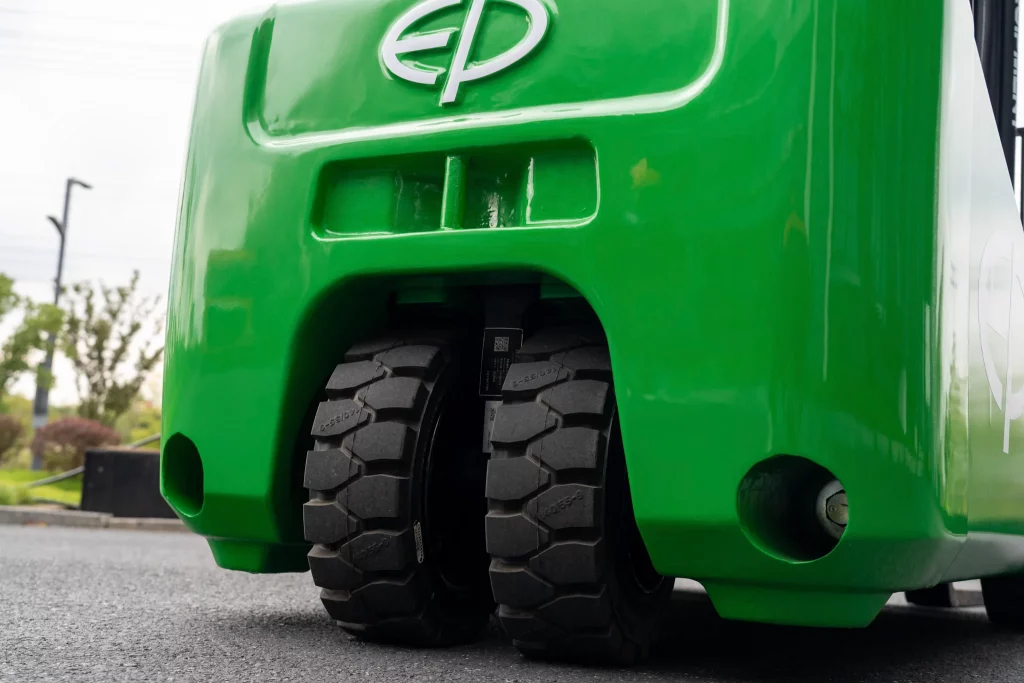

Exceptional manoeuvrability with 3-wheel design

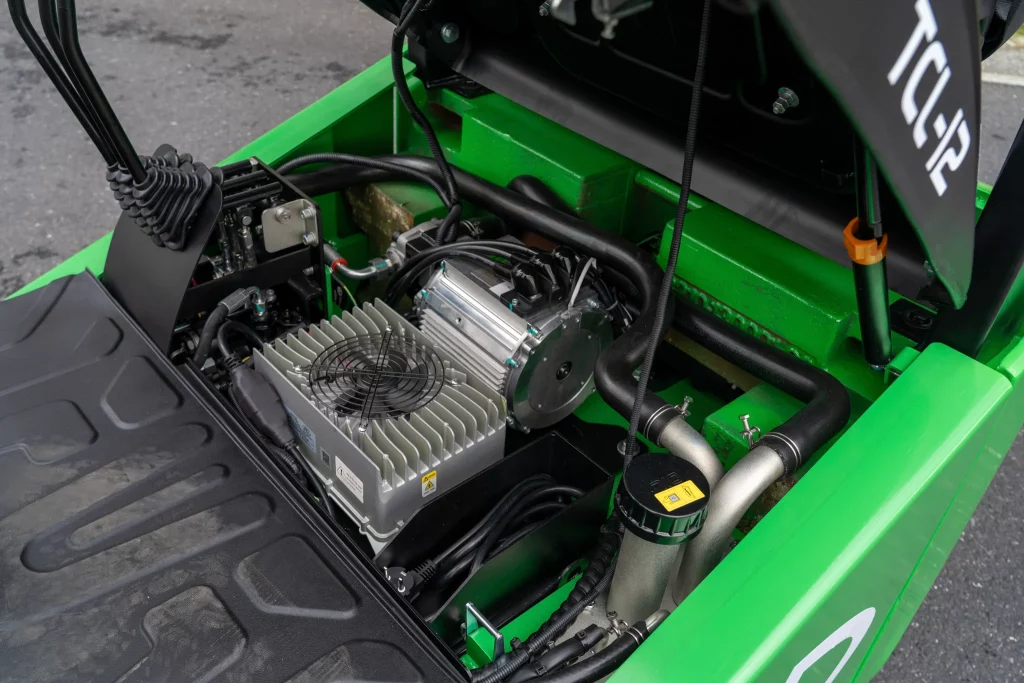

Dual-drive PMS motor system for precision control

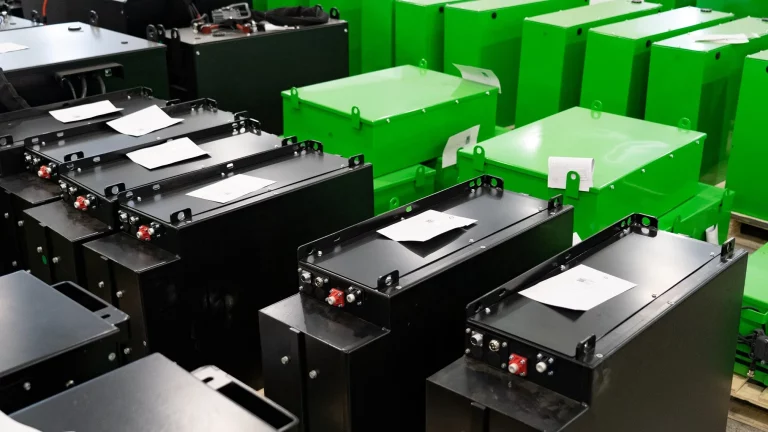

80V lithium-ion battery for consistent performance

Enhanced safety in tight spaces

Optimised for multi-floor operations

East Anglia

We have dealers in this area!

Scotland

We have dealers in this area!

North East

We have dealers in this area!

North West

We have dealers in this area!

Yorkshire & the Humber

We have dealers in this area!

East Midlands

We have dealers in this area!

West Midlands

We have dealers in this area!

Midlands

We have dealers in this area!

Wales

We have dealers in this area!

South West

We have dealers in this area!

Dorset

We have dealers in this area!

South East

We have dealers in this area!

London

We have dealers in this area!

Northern Ireland

We have dealers in this area!

Our dedicated sales and support network for the TCL101

With the support of EP Equipment distributors spread across the UK, you are guaranteed to receive fast assistance, personalised advice and original parts for your TCL101.

More and more companies are replacing their old equipment with 100% electric solutions like the TCL101, appreciated for their compactness, quiet operation and reduced operating costs.

Choosing the TCL101 means choosing a sustainable alternative, without compromising on power, versatility and autonomy.

Thanks to our network of partners in the UK, you benefit from:

  • Fast delivery of trucks like the TCL101
  • Qualified and responsive technical support
  • Constant availability of original spare parts
